Long fiber pultrusion
Innovative solutions for lightweight construction
– cutting-edge plant engineering for producing LFT pellets
Advantages at a glance
- Standard & custom lines
- High-quality fiber impregnation
- Fully automated operation
- Runs numerous fiber & thermoplastic combinations
- Development of individual LFT formulations
- LFT sample pre-production
- Throughputs up to 1,000 kg/h
- Compatible with SOMOS® materials handling systems
- Technical support & advice

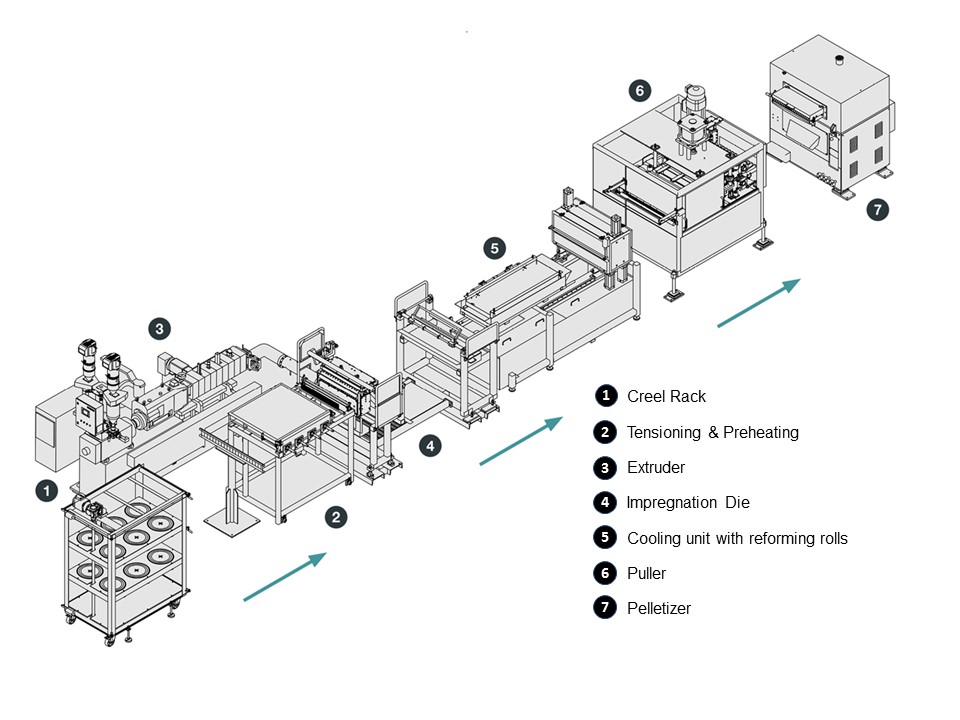

LFT system components
- Creel rack (1)
- Tensioner with fiber heating (2)
- Calender (only for UD tapes)
- Twin-screw extruder with polymer drying and dosing
- Impregnation die (3)
- Cooling section/water bath (4)
- Reforming units (5)
- Puller (6)
- Pelletizer with classifier screen (7)
- Conveyor and bag filler
Expandable with SOMOS® materials handling components (drying, conveying, dosing)
System
Click to enlarge
